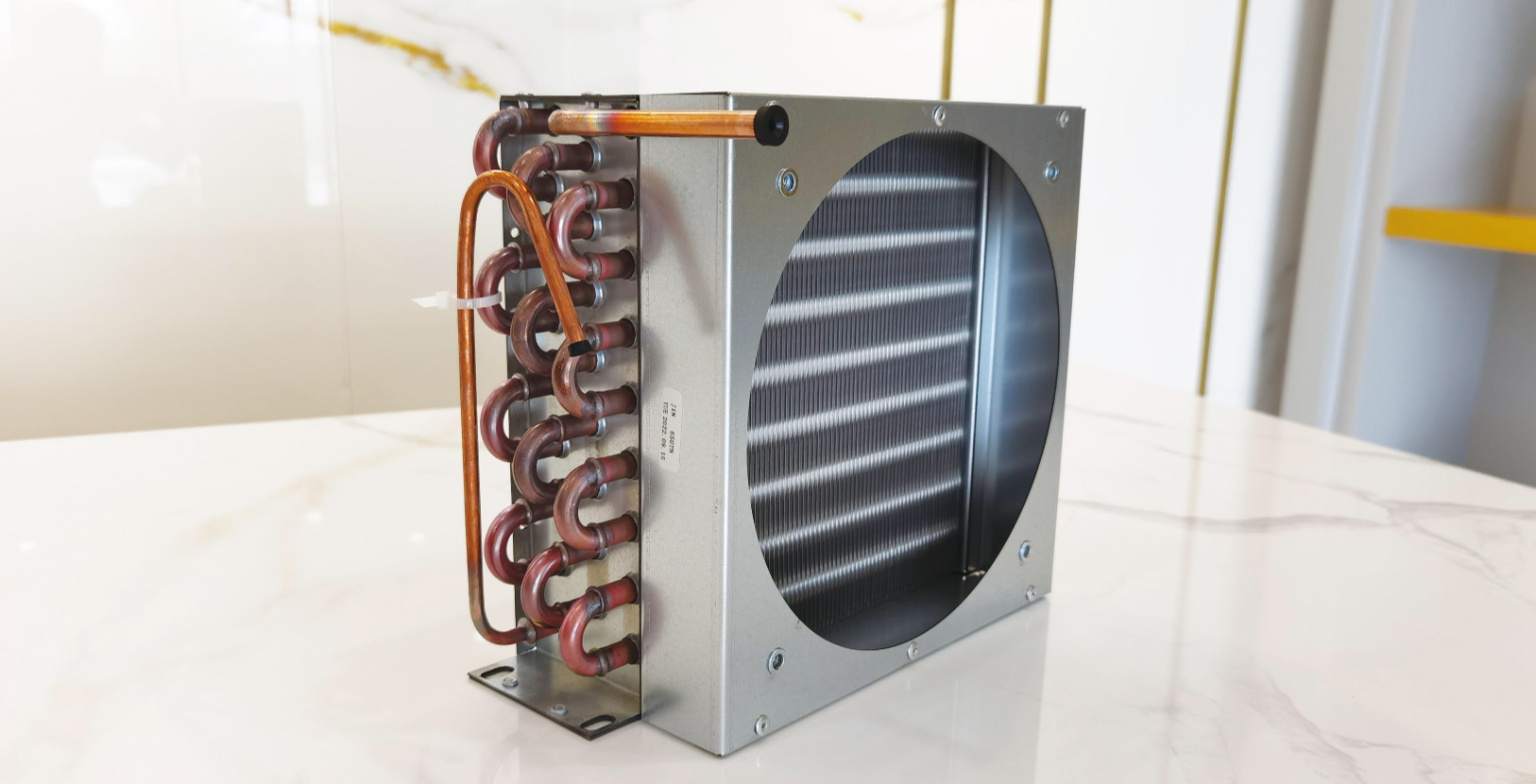

Condenser

Description

Description



A condenser is a common device in thermal engineering and refrigeration systems. Its main function is to convert gaseous substances into liquid state by cooling them, which is called condensation. This process usually involves releasing heat to the surrounding environment.

Main Types of Condensers:

Air-cooled Condensers Cool the gas by using air as the heat transfer medium (e.g., in household air conditioners and refrigerators).

Water-cooled Condensers Use water to absorb heat, often seen in large industrial systems or power plants (e.g., air conditioners, freezers).

Key Principle:

When a high-temperature, high-pressure gas flows through the condenser’s coils or tubes, the external cooling medium (air or water) absorbs its heat. This causes the gas to lose energy, change phase, and become a liquid, completing the condensation process.



Regular and Custom Size are Available;

Diameter of Copper Tube are 7/9.52/12/15.88 mm Available;

Mainly Used foe Heat Exchange of Air, Water and Refrigerants;

Applied to Refrigeration Like Freezers Cake/ Display Cabinets, etc.



Specification

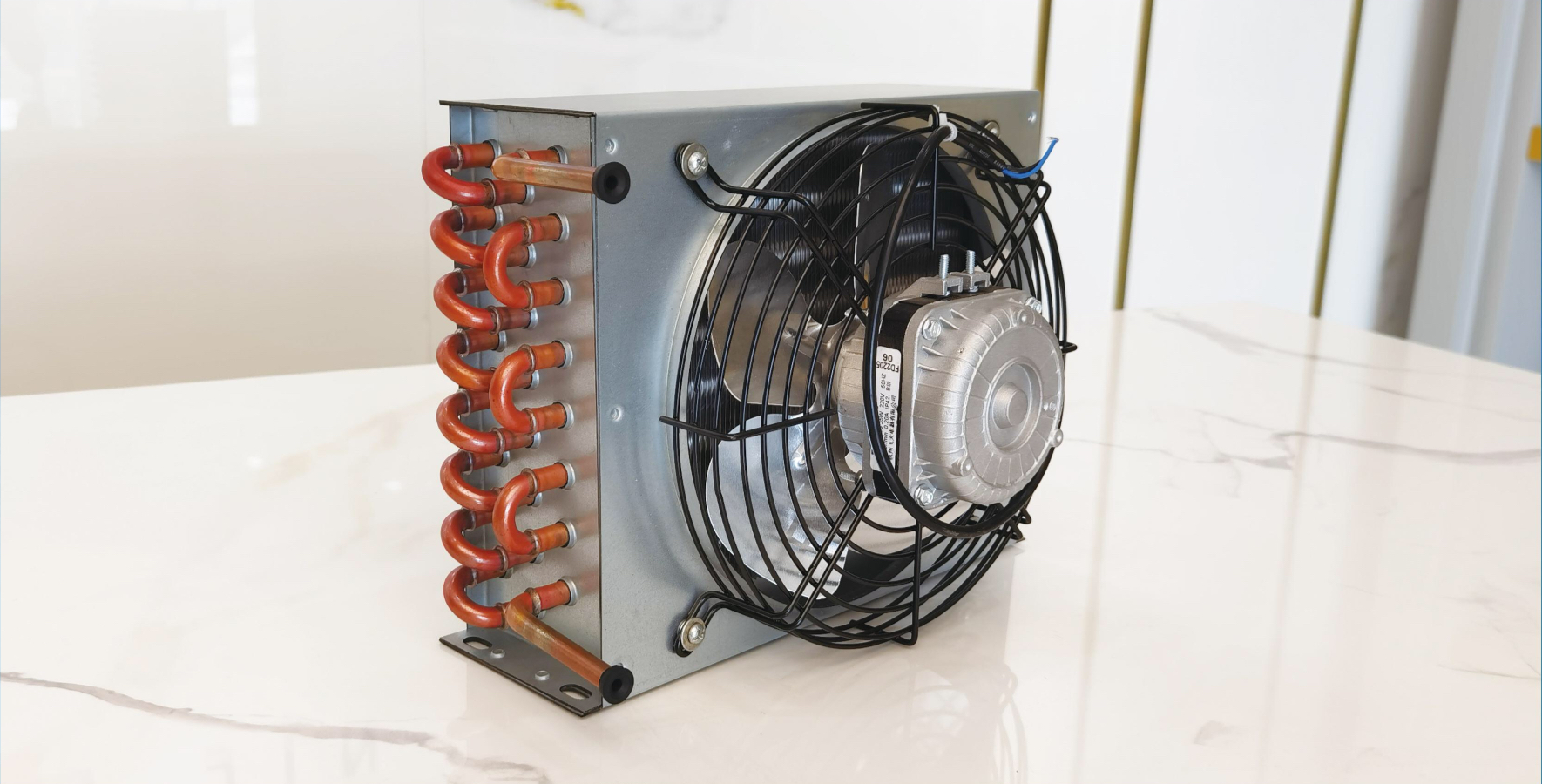

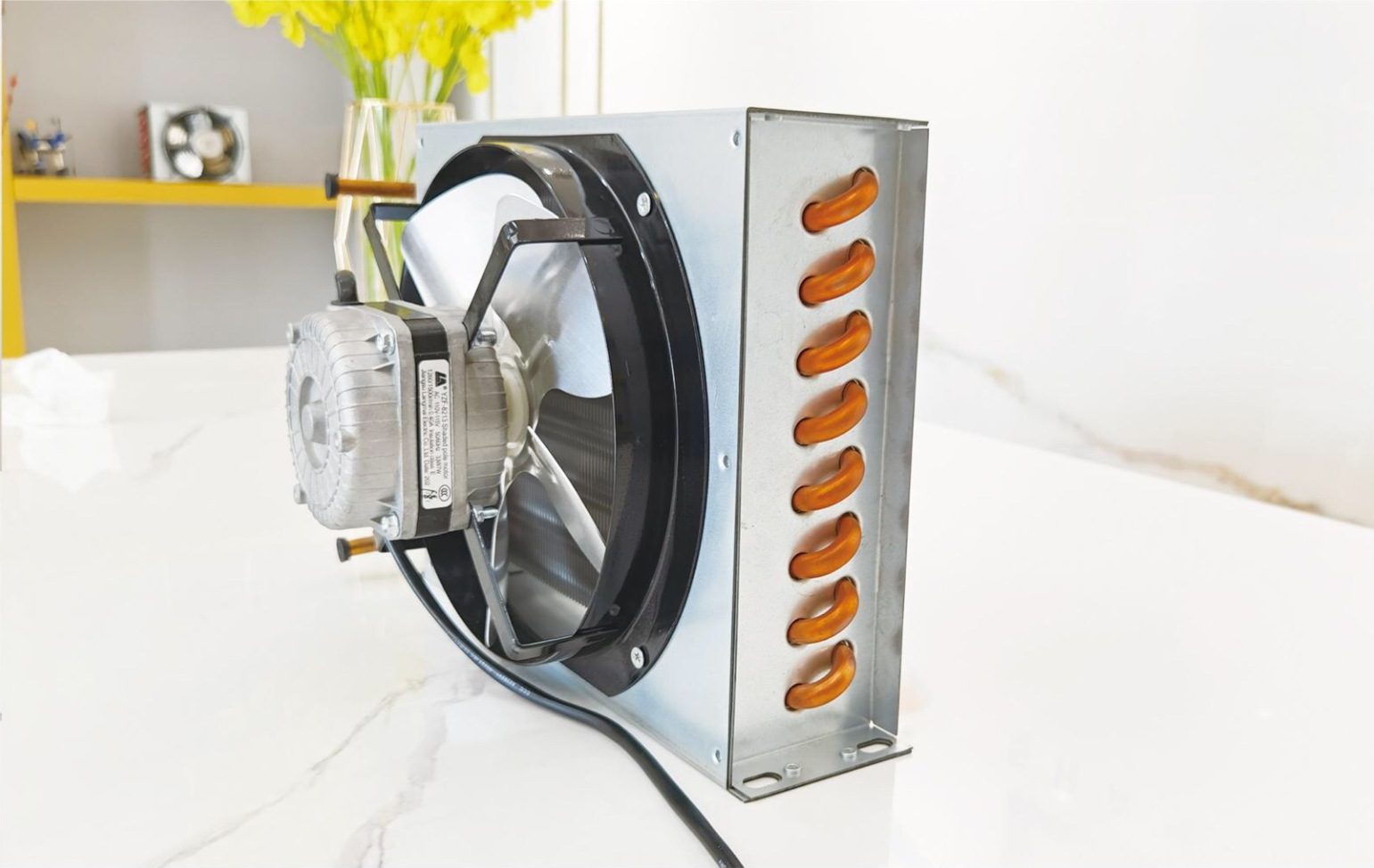

Model：GF-FNH-1.5

Heat Exchange Area: 1.5 m²

Heat Exchange Capacity: 420 W

Capacity(HP): 1/4 HP

Air Volume: 280 m³/h

Fan Blade Diameter:200 mm

Fan Motor Power: 22 W

Motor Voltage:110 V/220 V

Copper Pipe Diameter: 7 mm

Inlet Diameter: 7 mm

Outlet Diameter: 7 mm

Dimension: 260×60×240 (L×W×H) mm

Inner groove tubes are available. Dimensions and configuration can be customized!

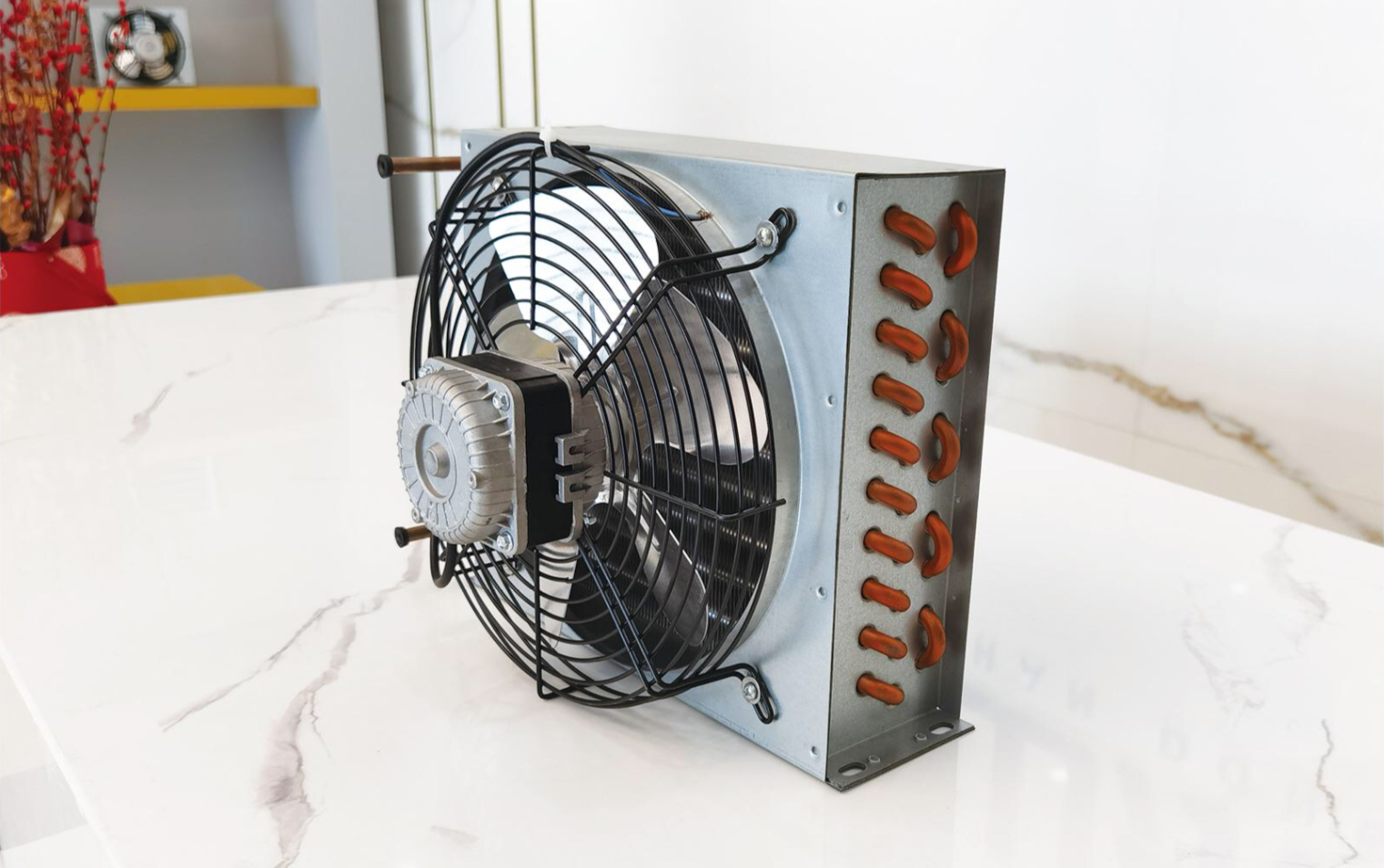

Model: GF-FNH-2.9

Heat Exchange Area: 2.9 m²

Heat Exchange Capacity: 820 W

Capacity(HP): 1/3 HP

Air Volume: 340 m³/h

Fan Blade Diameter:200 mm

Fan Motor Power: 33 W

Motor Voltage:110 V/220 V

Copper Pipe Diameter: 7 mm

Inlet Diameter: 7 mm

Outlet Diameter: 7 mm

Dimension: 300×140×230 (L×W×H) mm

Inner groove tubes are available. Dimensions and configuration can be customized!

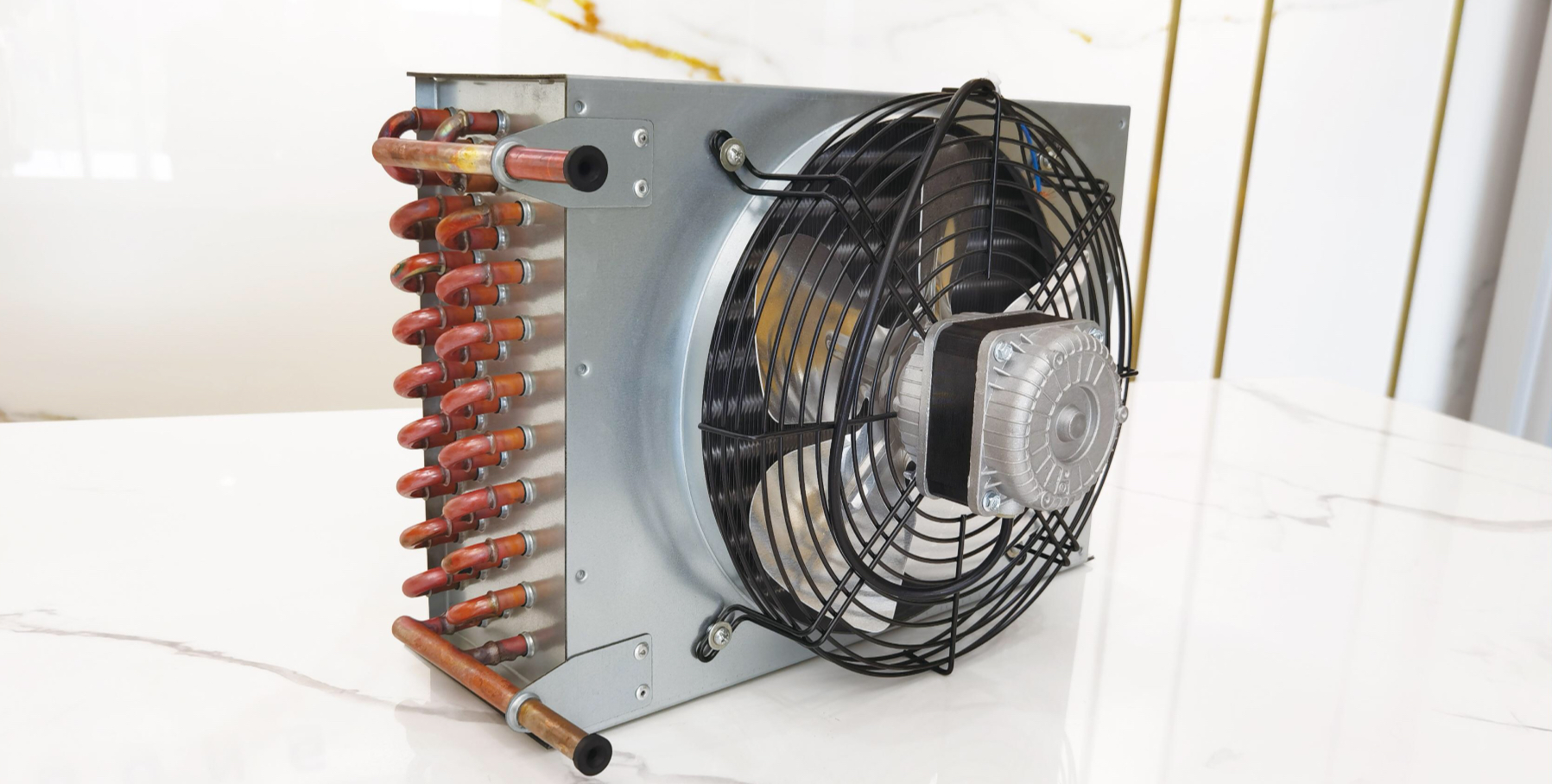

Model: GF-FNH-6

Heat Exchange Area: 6 m²

Heat Exchange Capacity: 1680 W

Capacity(HP): 3/4 HP

Air Volume: 1300 m³/h

Fan Blade Diameter:250 mm

Fan Motor Power: 60 W

Motor Voltage:110 V/220 V

Copper Pipe Diameter: 9.52 mm

Inlet Diameter: 12 mm

Outlet Diameter: 12 mm

Dimension: 400×140×280 (L×W×H) mm

Inner groove tubes are available. Dimensions and configuration can be customized!

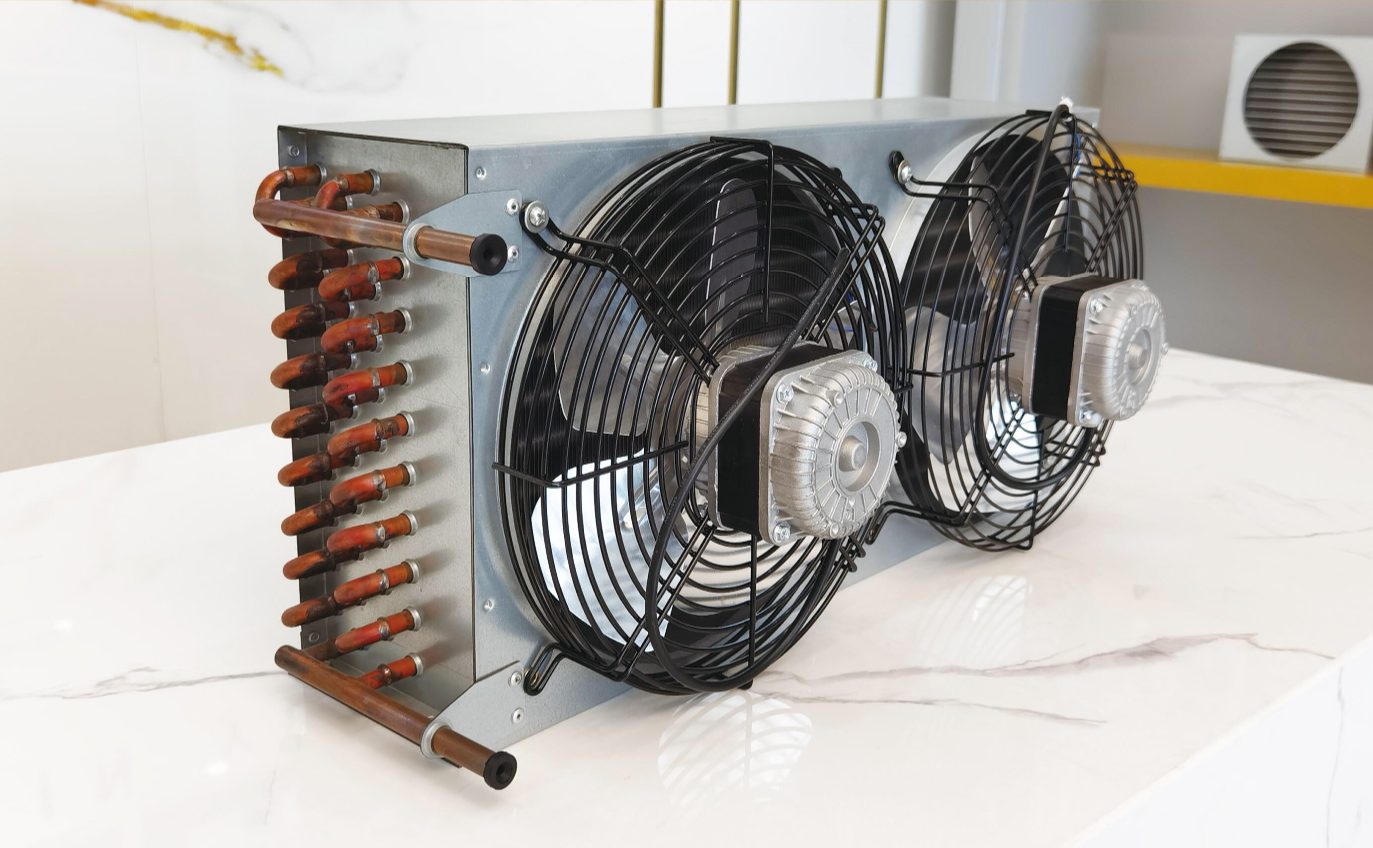

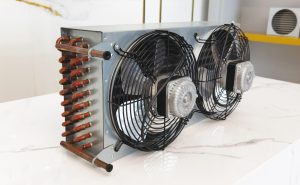

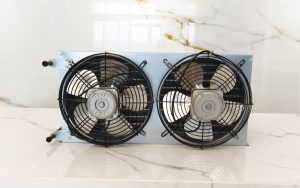

Model: GF-FNH-12

Heat Exchange Area: 12 m²

Heat Exchange Capacity: 3360 W

Capacity(HP): 1.5 HP

Air Volume: 2200 m³/h

Fan Blade Diameter:250 mm

Fan Motor Power: 60 W× 2

Motor Voltage:110 V/220 V

Copper Pipe Diameter: 9.52 mm

Inlet Diameter: 12 mm

Outlet Diameter: 12 mm

Dimension: 600×140×280 (L×W×H) mm

Inner groove tubes are available. Dimensions and configuration can be customized!





Full size customizable
