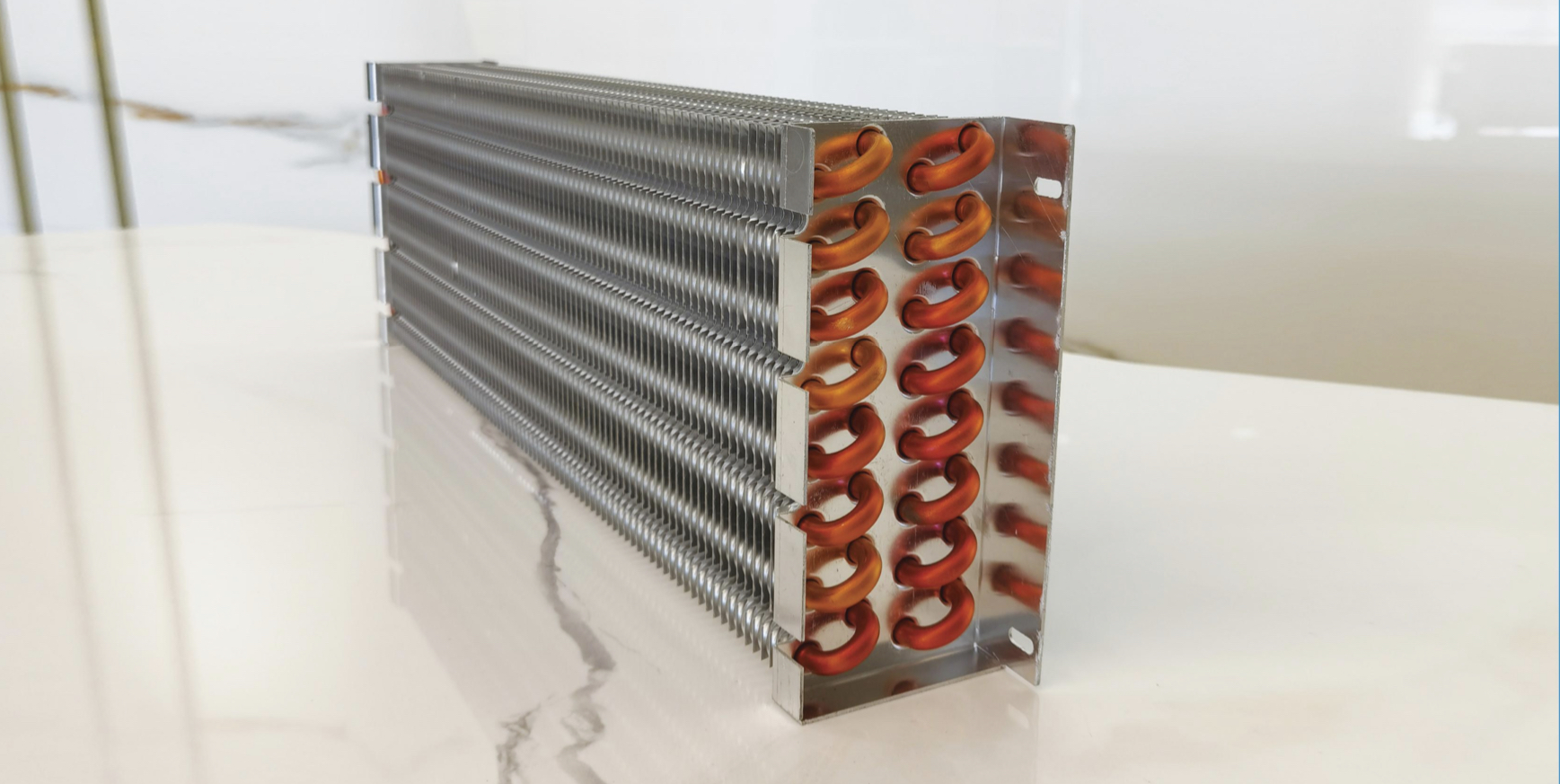

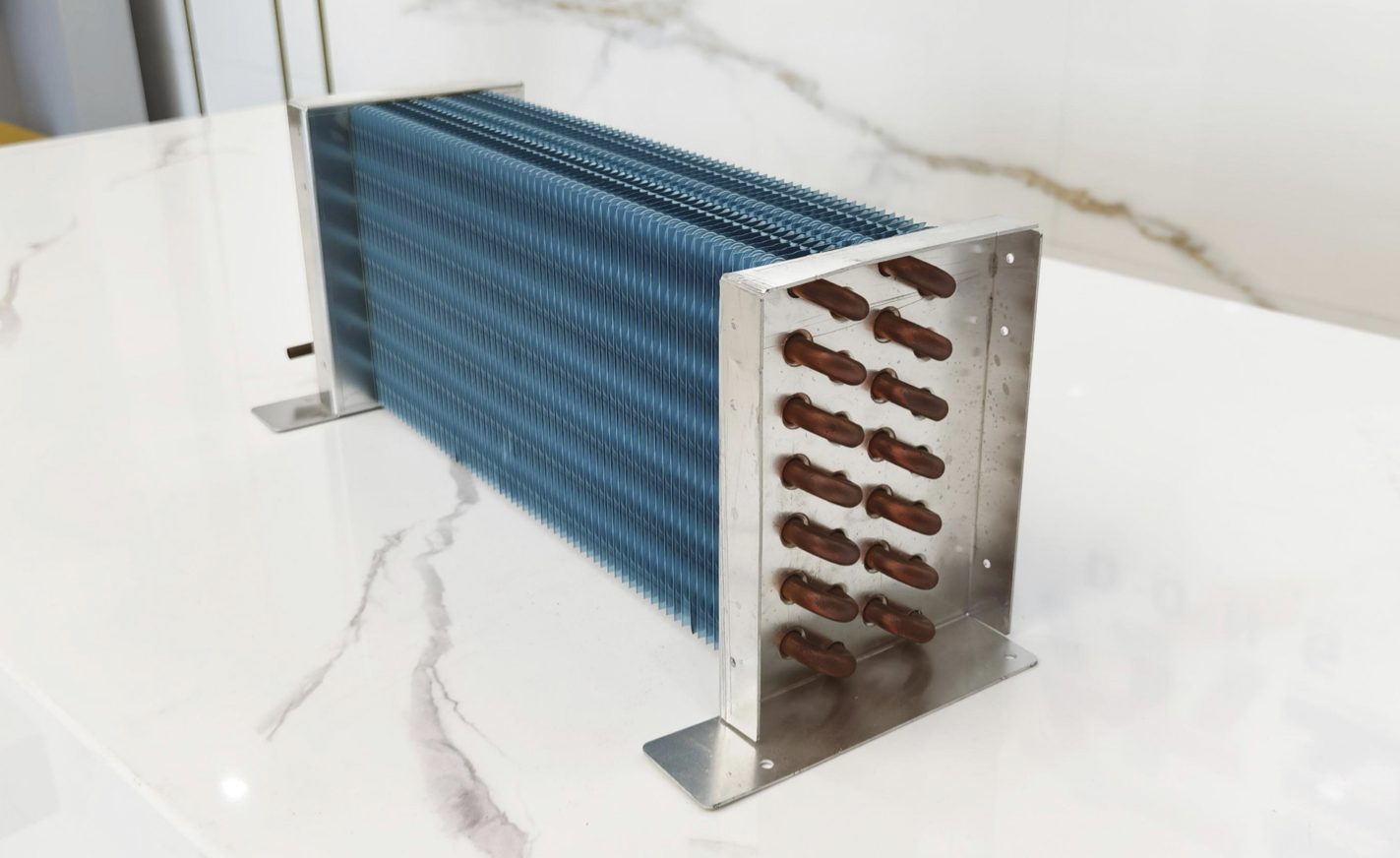

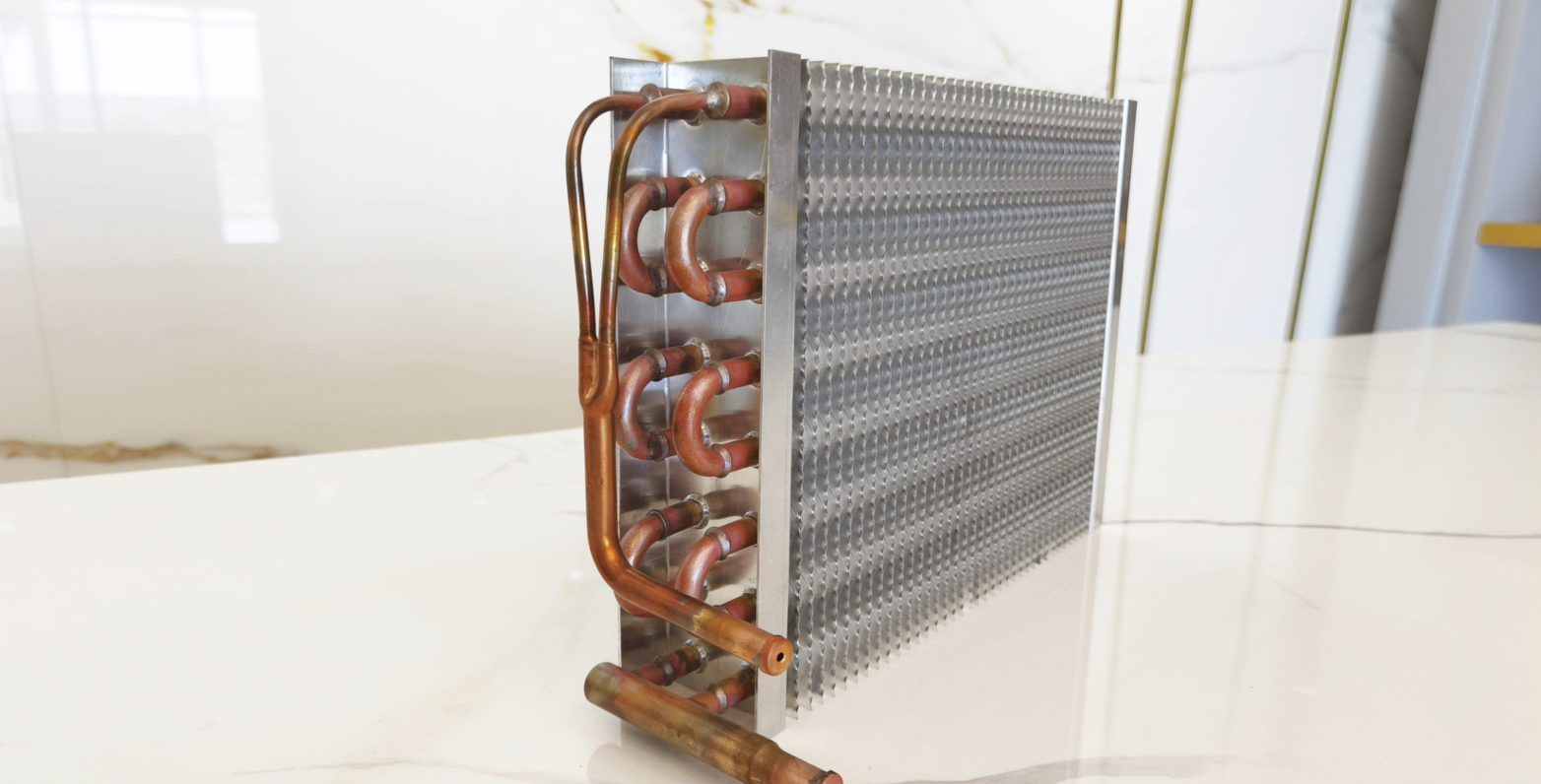

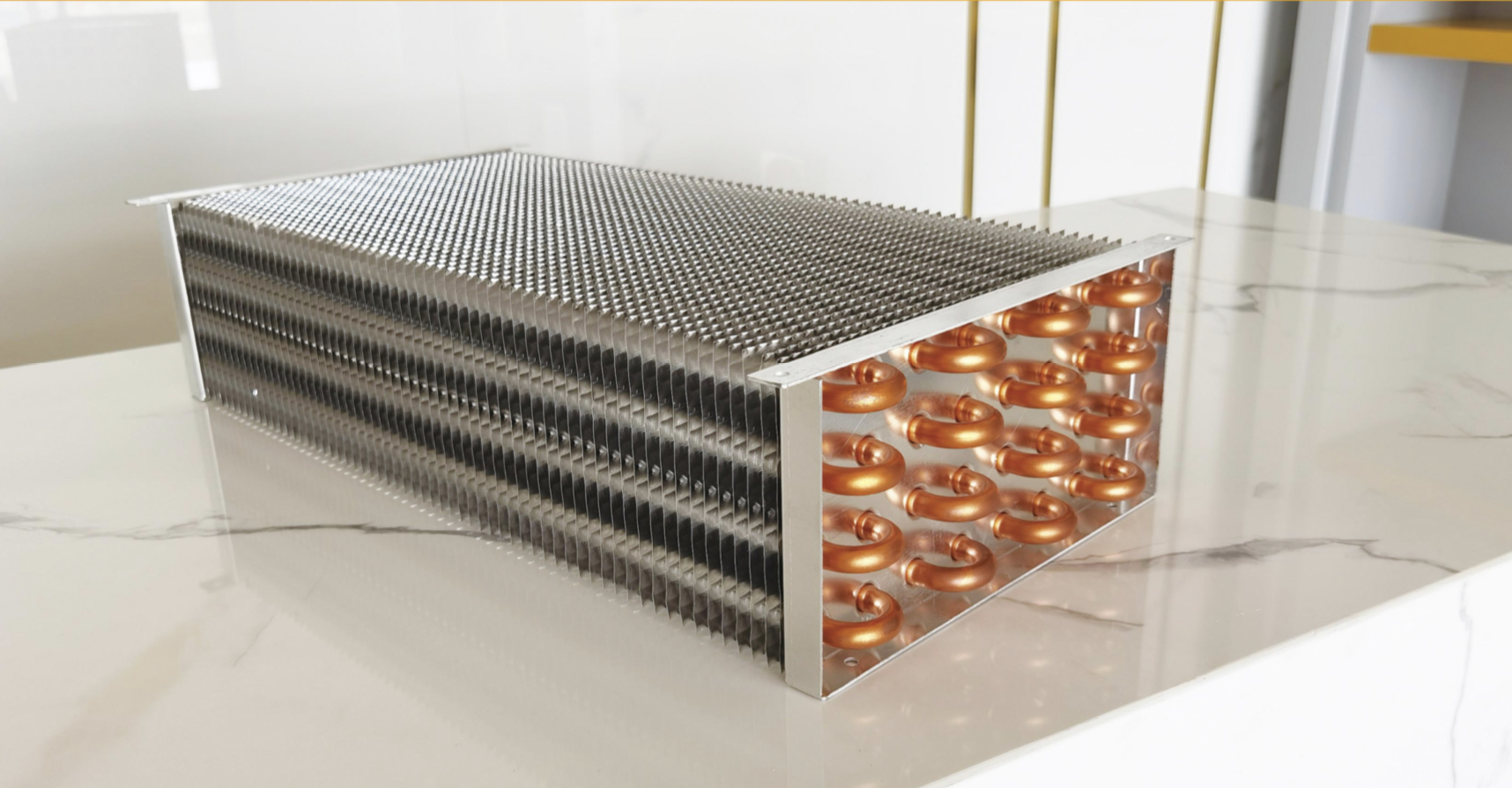

Evaporator

Description

Description



The evaporator is a heat exchange device. After throttling, the low-temperature and low-pressure refrigerant liquid evaporates (boils) into steam, absorbs the heat of the cooled material, and lowers the temperature of the material to achieve the purpose of freezing and refrigerating food. In the air conditioner, it cools the surrounding air to achieve the effect of cooling and dehumidifying the air. The lower the evaporation temperature of the refrigerant in the evaporator, the lower the temperature of the cooled object. In the refrigerator, the evaporation temperature of the refrigerant is generally adjusted to -26℃~-20℃, and in the air conditioner it is adjusted to 5℃~8℃.

Specification



Model：GF-ZFQ-3.2

Evaporation Area: 3.2 m²

Inlet Diameter: 6mm

Outlet Diameter: 6mm

Boundary Dimension: 430×135×180mm

Remarks: Pipe Diameter 9.52mm

Inner groove tubes are available. Dimensions and configuration can be customized!





Model: GF-ZFQ-4.2

Evaporation Area: 4.2 m²

Inlet Diameter: 8mm

Outlet Diameter: 10mm

Boundary Dimension: 600×90×200mm

Remarks: Pipe Diameter 9.52mm

Inner groove tubes are available. Dimensions and configuration can be customized!





Model: GF-ZFQ-12

Evaporation Area: 12 m²

Inlet Diameter: 12mm

Outlet Diameter: 19mm

Boundary Dimension: 1000×140×280mm

Remarks: Pipe Diameter 12mm

Inner groove tubes are available. Dimensions and configuration can be customized!





Full size customizable
